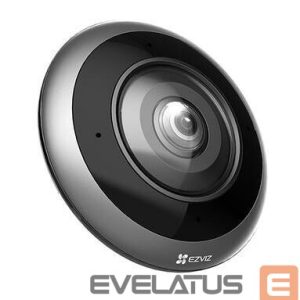

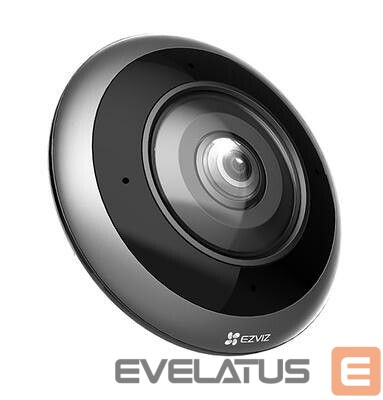

IP-kamera EZVIZ E4P Viedā Wi-Fi panorāmas zivs acs kamera

Two-Way Talk

Sleep Mode for Privacy Protection

H.265 Video Compression

Smart Integration with Google Assistant & Amazon Alexa¹

Supports MicroSD Card (up to 512 GB) & EZVIZ CloudPlay Storage²

Specifications

Specifications
Model	CS-E4p-R100-8C6WKF
Compression
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Lens	M12
Day & Night	IR-cut filter with auto switch
DNR	3D DNR
WDR	Digital WDR
Compression
Image Sensor	1/2.8” Progressive Scan CMOS
Shutter Speed	Self-adaptive shutter
Max. Resolution	3K⁺ (2320 × 2320)
Frame Rate	Max. 25 fps
Network
Smart Alarm	Motion Detection, AI-Powered Human Shape Detection
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface
Storage	Supports microSD card (max. 512 GB)
Power	Type-C
Wi-Fi
Standard	IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.412 GHz ~ 2.472 GHz 5G: 5.17 GHz ~ 5.25 GHz
Channel Bandwidth	Support 20 MHz
Security	WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b 11 Mbps, 11g 54 Mbps, 11nHT20 MCS7, 11a 54 Mbps, 11nHT20 MCS7, 11ac MSC7
Output Power (EIRP)	19 dBm
Antenna Gain	2.4G: 1.79 dBi 5G: 3.61dBi
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5 V / 2 A
Power Consumption	Max. 8 W
IR Range	Max. 10 meters (32.81 ft)
Product Dimensions	φ80 × 35 mm (φ3.15 × 1.38 inch)
Packaging Dimensions	114 × 114 × 120 mm (4.49 × 4.49 × 4.72 inch)
Bare Weight	122 g (4.3 oz)
Weight	610 g (21.52 oz)
In the box
In the box	– E4p Camera
	– Mounting Base
	– Drill Template
	– Power Adapter
	– Type-C Cable
	– Screw Kit
	– Pin Key
	– Regulatory Information × 2
	– Quick Start Guide
Certifications
Certifications	CE / RoHS / REACH / WEEE / UL

• Google Assistant and Amazon Alexa are not available in certain languages and countries.
• Local storage cards must be purchased separately. Cloud storage service is only available in certain markets. Please verify availability before making a purchase.
• Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
• The picture-in-picture mode is only available if the human shape detection function is enabled.
