Consumer electronics Ruijie Komutators RG-ES210GS-P 10-Port Gigabit PoE+ 120W Smart Cloud Managed

Basic information

EAN: 6971693275829

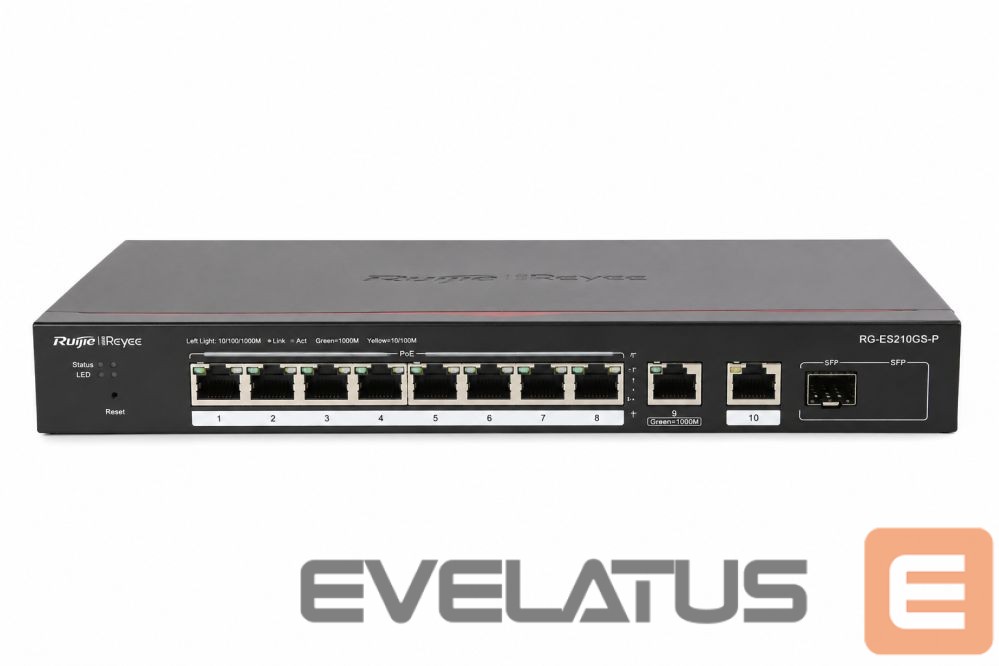

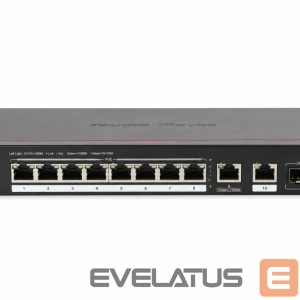

**Ruijie Reyee RG-ES210GS-P** is a 10-port Gigabit **Smart Cloud Managed PoE+ switch** designed for small and medium-sized business networks, IP surveillance systems, offices, hotels, retail stores, educational facilities, and other environments requiring reliable network connectivity, PoE power delivery, and centralized remote management.

The switch features **10 × 10/100/1000 Mbps Gigabit Ethernet ports**, with **8 ports supporting PoE/PoE+ (IEEE 802.3af/802.3at)**. With a total **120 W PoE power budget**, it can simultaneously transmit data and provide power over a single Ethernet cable to compatible devices such as IP cameras, wireless access points, VoIP phones, and other PoE-powered equipment.

### Key Features

* 10 × 10/100/1000 Mbps Gigabit Ethernet ports
* 8 × PoE/PoE+ ports
* **120 W total PoE power budget**
* IEEE 802.3af / 802.3at support
* 1 × Gigabit SFP Combo port
* **20 Gbps switching capacity**
* **14.8 Mpps forwarding rate**
* Layer 2 Smart Managed Switch
* **Ruijie Cloud** remote management
* **Ruijie Reyee App** support
* Web/eWeb management interface
* VLAN configuration
* Automatic loop prevention
* IP camera and NVR recognition
* **PoE Watchdog**
* Remote PoE port restart
* Port Isolation
* DHCP Snooping
* Storm Control
* CCTV extended transmission mode up to **250 m**
* Fanless design for silent operation
* Compact and reliable construction
* Manufacturer warranty: **3 years**

### Ruijie Cloud Management

The RG-ES210GS-P supports the **Ruijie Cloud** platform, allowing network administrators and installers to remotely configure, monitor, and maintain the switch.

The device can be managed through a web browser or the **Ruijie Reyee mobile application**, providing convenient access to switch status, connected devices, ports, PoE operation, and network configuration.

Cloud management simplifies installation and maintenance, especially when switches are deployed across multiple locations. Administrators can monitor network status and troubleshoot many common issues without physically visiting the installation site.

### Optimized for IP Surveillance

The RG-ES210GS-P is particularly well suited for **IP CCTV and video surveillance networks**. Its eight PoE+ ports can power compatible IP cameras directly through Ethernet cabling, reducing the need for separate power adapters and electrical wiring.

The switch provides IP camera and NVR recognition features, helping installers quickly identify surveillance equipment connected to the network.

The **PoE Watchdog** function can detect an unresponsive powered device and restart the corresponding PoE port, helping restore the operation of IP cameras or other PoE devices without requiring manual intervention.

For surveillance installations where devices need to be positioned farther away from the switch, an extended transmission mode can provide connectivity at distances of up to **250 metres** under supported operating conditions.

### Network Security and Reliability

The switch includes a range of Layer 2 management and protection features designed to improve network stability and security.

Functions such as **Port Isolation** can prevent direct communication between selected connected devices, while **DHCP Snooping** helps protect the network against unauthorized DHCP servers.

Storm Control functionality helps limit excessive broadcast, multicast, and unknown-unicast traffic that could otherwise negatively affect network performance.

Automatic loop prevention also helps protect the network against accidental Ethernet loops caused by incorrect cabling or configuration.

### Technical Specifications

| Specification | Details |
| ————————– | ————————— |
| Model | RG-ES210GS-P |
| Switch Type | Smart Cloud Managed |
| Network Layer | Layer 2 |
| Ethernet Ports | 10 × 10/100/1000BASE-T RJ45 |
| PoE Ports | 8 |
| PoE Standards | IEEE 802.3af / 802.3at |
| Total PoE Budget | 120 W |
| SFP | 1 × 1GE SFP |
| Combo Port | 1 × 1GE Combo |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.8 Mpps |
| Cloud Management | Ruijie Cloud |
| Mobile Management | Ruijie Reyee App |
| Web Management | Yes |
| PoE Watchdog | Yes |
| IP Camera Recognition | Yes |
| Port Isolation | Yes |
| DHCP Snooping | Yes |
| Storm Control | Yes |
| Extended CCTV Transmission | Up to 250 m |
| Operating Temperature | 0°C to +40°C |
| Cooling | Fanless |
| Manufacturer Warranty | 3 years |

### Applications

The **Ruijie Reyee RG-ES210GS-P** is suitable for a wide range of professional network installations, including:

* IP CCTV and video surveillance systems
* Wireless access point installations
* VoIP telephone systems
* Small and medium-sized office networks
* Retail stores and shopping facilities
* Hotels and hospitality environments
* Schools and educational facilities
* Warehouses and industrial premises
* Multi-site business networks

With its **120 W PoE budget**, Gigabit connectivity, intelligent PoE management, and Ruijie Cloud remote administration, the RG-ES210GS-P provides a flexible solution for installations where multiple network devices need both data connectivity and power.

Its **fanless design** ensures quiet operation, while cloud-based management, PoE Watchdog, surveillance-oriented functions, and Layer 2 network features make the RG-ES210GS-P a practical choice for professional SMB and CCTV network deployments.
