IP-kamera EZVIZ HB90x Dual 4G Kit
Availability:
10+
(see locations)
Pay in ten equal instalments 10 x 20.30€
Product returnswithin 14 days
31 stores ALL OVER LATVIA
High rating
Official warranty
Delivery methods:
Payment methods:
Basic information
Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage⁴
Next-Gen Vision, Next-level Flexibility
Specifications
| Specifications | |
|---|---|
| Specifications | CS-HB90x/SP-R100 (4MP+4MP W4GA), CS-HB90x/SP (4MP+4MP, W4GA) |
| Camera | |
| Image Sensor | 1/2.8” 4-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 122°, Horizontal 105°, Vertical 58° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 65°, Horizontal 56°, Vertical 30° |
| PT Angle | Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision Distance | 35 m (When two lenses point in the same direction) |
| Video & Audio | |
| Max Resolution | 2K+ (2K+ (2560 × 1440)) |
| Frame Rate | Max. 15fps; Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; HD; Standard; Adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2 Mbps (Total) |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n , 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Support 20MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :72Mps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Minimum Network Requirement | 4 Mbps |
| Bluetooth | Supports |
| Frequency Bands | IN LTE-FDD: B1/B3/B5/B8, IN LTE-TDD: B34/B38/B39/B40/B41, EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions | -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing) |
| Battery Capacity | 10,400 mAh |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Power Consumption | Max. 10 W |

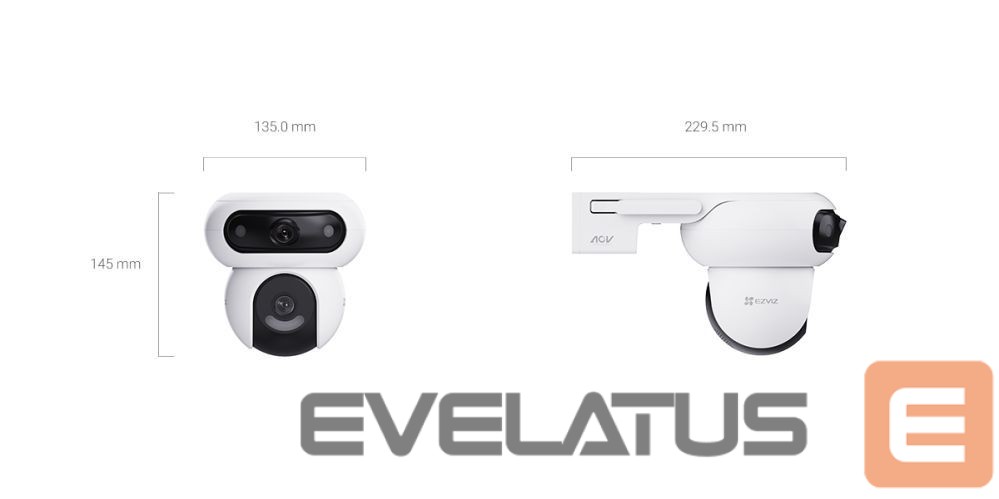

| Dimensions | 135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 inch) |
| Packaging Dimensions | 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch) |
| Weight | Net weight for CB90x: 862g, Net weight for Solar Panel 8W: 428g, With package: 1902g |
| Specifications | |
| Model | CS-PSP8-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.4 V ± 5% |
| Power Current | 1.48 A ± 5% |
| Open Circuit Voltage | 6.8 V ± 5% |
| Short Circuit Current | 1.64 A ± 5% |
| Max. Power | 8 W ± 5% |
| Interface | Type-C |
| Solar Cell Efficiency | ≥22% |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| Product Dimensions | 267.3 × 186.5 × 17.5 mm |
| Weight | 428 g |
| In the box | |
| In the box | – HB90x Dual 4G Camera |
| – Solar Panel 8W | |
| – Drilling Template | |
| – Adjustable Mounting Bracket | |
| – Screw Kit × 2 | |
| – Power Cable | |
| – Regulatory Information × 4 | |
| – Quick Start Guide × 2 | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
- This feature requires OTA update via the EZVIZ App before using. Please check the device page on your EZVIZ App for detailed information.
- The inclusion of the supporting solar panel in the HB90x Dual 4G is intended to provide an additional power source for the main device, helping to extend the battery life of the camera to reduce the frequency of recharging. To prolong the battery life, we recommend you to enable the AOV mode for wiser battery consumption. Please note that the HB90x Dual 4G only supports working with the EZVIZ Solar Panels that use Type-C charging cables.
- Amazon Alexa and Google Assistant are not available in certain languages and countries.
- The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
- To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
- When the AOV mode is enabled, according to EZVIZ Lab’s test results under standard conditions, the HB90x Dual 4G is able to detect movements at a distance of up to 25 meters during the day, and up to 12 meters during the nighttime. The actual detection range may differ due to other environmental factors.
- Data from EZVIZ Lab’s test results under standard conditions. The distance figures are obtained based on the camera’s four spotlights or four IR lights being switched on and pointing in the same direction. Actual distance may vary depending on battery level and other environmental factors.
- Data from EZVIZ Lab’s test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, as well as other environmental factors.
